Description

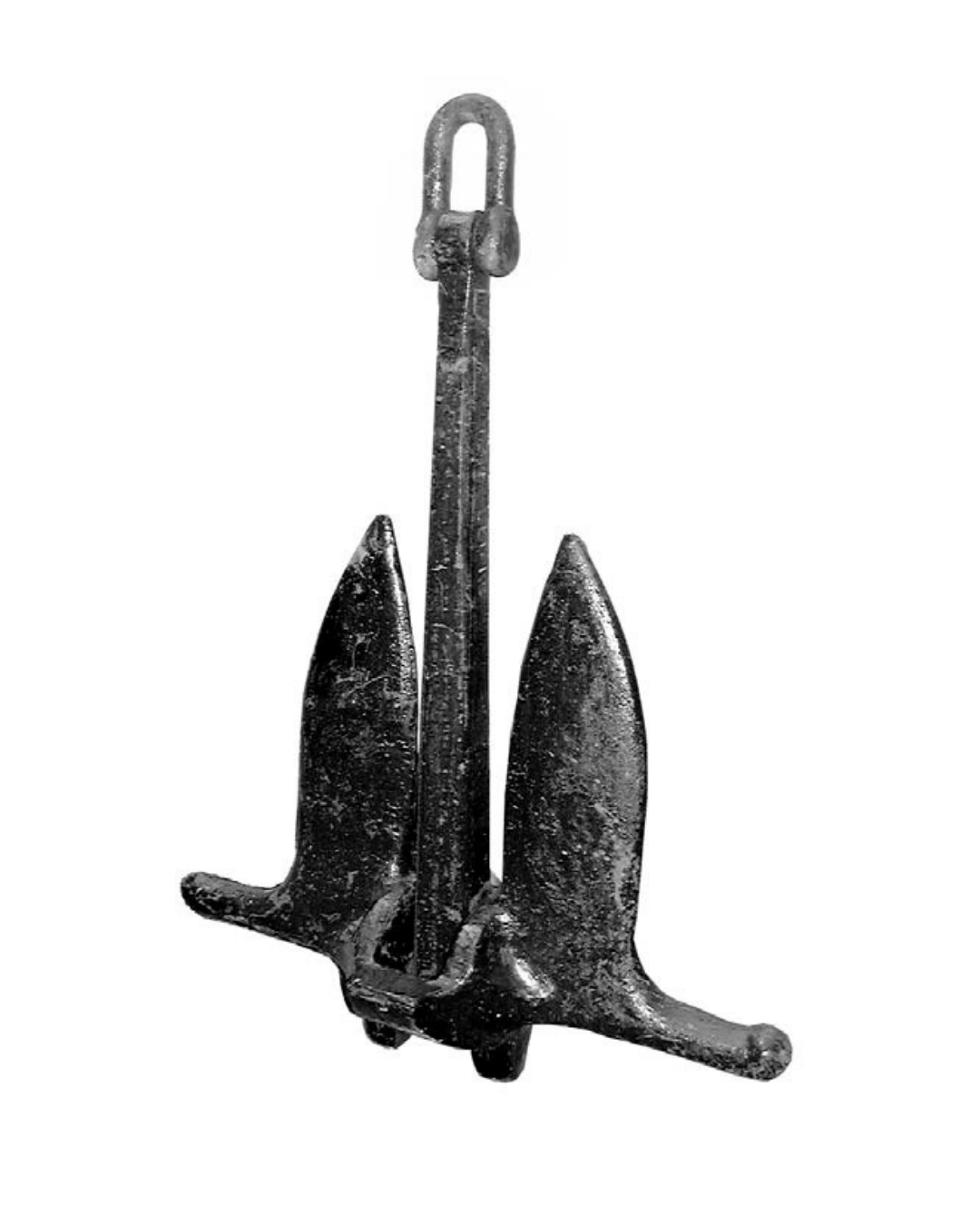

This anchor simplifies ship bow design, and eliminates the need for cumbersome hawse pipe bolsters. It effectively stoppers the hawse pipe, houses freely with minimum protrudence and provides maximum bearing on the ship’s shell. The anchor provides great holding power for most uses. Certified drawings available on request.
| Anchor Weight (lb) | A | B | C | D | E | F | G | H | J |
|---|---|---|---|---|---|---|---|---|---|
| 200 | 30-7/8 | 29-11/16 | 12-1/16 | 20-1/8 | 16-3/16 | 5-1/2 | 1 | 4 | 2-3/4 |
| 250 | 33-5/16 | 32 | 13 | 21-11/16 | 17-7/16 | 5-1/2 | 1 | 4 | 3 |
| 300 | 35-5/16 | 34 | 13-3/4 | 23 | 18-1/2 | 5-1/2 | 1 | 4 | 3-1/8 |
| 350 | 37-3/16 | 35-3/4 | 14-1/2 | 24-1/4 | 19-1/2 | 5-1/2 | 1 | 4 | 3-3/8 |
| 400 | 38-7/8 | 37-3/8 | 15-1/4 | 25-3/8 | 20-3/8 | 5-1/2 | 1 | 4 | 3-1/2 |
| 450 | 40-3/8 | 38-7/8 | 15-3/4 | 26-3/8 | 21-1/8 | 5-1/2 | 1 | 4 | 3-3/8 |
| 500 | 41-3/4 | 40-1/4 | 16-3/8 | 27-1/4 | 21-7/8 | 7 | 1-1/4 | 4-7/8 | 3-3/4 |
| 750 | 48 | 46 | 18-3/4 | 31-1/4 | 25-1/8 | 7-1/2 | 1-1/4 | 4-7/8 | 4-3/8 |
| 1,000 | 52-3/4 | 50-3/4 | 20-5/8 | 34-3/8 | 27-5/8 | 7-1/2 | 1-1/2 | 5-3/8 | 4-3/4 |
| 2,000 | 66-1/2 | 64 | 26 | 43-1/4 | 34-7/8 | 9-3/4 | 2 | 7-3/4 | 6 |
| 3,000 | 76 | 73 | 29-5/8 | 49-1/2 | 39-3/4 | 12 | 2-1/2 | 9-1/4 | 6-7/8 |
| 4,000 | 83-3/4 | 80-1/2 | 32-3/4 | 54-1/2 | 43-7/8 | 12 | 2-1/2 | 9-1/4 | 7-1/2 |
| 5,000 | 90-3/8 | 86-3/4 | 35-1/4 | 58-3/4 | 47-1/4 | 15 | 3 | 10-1/4 | 8-1/8 |
| 6,000 | 96 | 92-1/8 | 37-1/2 | 62-1/2 | 50-1/4 | 15 | 3 | 10-3/4 | 8-3/8 |
| 7,000 | 101 | 97 | 39-1/2 | 65-3/4 | 52-7/8 | 15 | 3 | 10-3/4 | 9-1/8 |
| 8,000 | 105-3/4 | 101-1/2 | 41-1/4 | 68 | 55-3/8 | 15 | 3 | 10-3/4 | 9-1/2 |
| 9,000 | 110 | 105-1/2 | 43 | 71-1/2 | 57-1/2 | 17 | 3-1/2 | 12 | 10 |
| 10,000 | 113-3/4 | 109-1/4 | 44-1/2 | 74 | 59-1/2 | 17 | 3-1/2 | 12 | 10-1/4 |
| 11,000 | 117-1/2 | 112-7/8 | 45-3/4 | 76-1/2 | 61-1/2 | 19 | 4 | 13-3/8 | 10-1/2 |
| 12,000 | 120-3/4 | 116 | 47-1/8 | 78-5/8 | 63-1/4 | 19 | 4 | 13-3/8 | 10-1/8 |
| 13,000 | 124 | 119-1/8 | 48-3/8 | 80-3/4 | 64-7/8 | 19 | 4 | 13-3/8 | 11-1/8 |
| 14,000 | 127-1/4 | 122-1/4 | 49-5/8 | 82-3/4 | 66-5/8 | 19 | 4 | 13-3/8 | 11-1/2 |
| 15,000 | 130 | 125 | 50-3/4 | 84-5/8 | 68 | 19 | 4 | 13-3/8 | 11-3/4 |
| 16,000 | 133-1/4 | 128 | 52 | 86-3/4 | 69-3/4 | 19 | 4 | 13-3/8 | 12 |
| 17,000 | 136 | 130-1/2 | 53-1/8 | 88-1/2 | 71-1/8 | 19 | 4 | 13-3/8 | 12-1/4 |
| 18,000 | 138-3/4 | 133-1/8 | 54-1/8 | 90-1/4 | 72-1/2 | 22 | 4-1/2 | 15-3/4 | 12-1/2 |
| 19,000 | 141 | 135-1/2 | 55 | 91-7/8 | 73-7/8 | 22 | 4-1/2 | 15-3/4 | 12-3/4 |
| 20,000 | 143-1/4 | 137-5/8 | 56 | 93-1/4 | 75 | 22 | 4-1/2 | 15-3/4 | 12-7/8 |
| 25,000 | 154 | 148 | 60-1/4 | 100-1/2 | 80-3/4 | 22 | 4-1/2 | 15-3/4 | 13-7/8 |
| 30,000 | 164 | 157-1/2 | 64-1/8 | 106-3/4 | 86 | 24 | 5 | 17-3/4 | 14-3/4 |
| 40,000 | 180 | 173 | 70 | 117 | 94 | 26 | 5-1/2 | 19 | 16 |
| 50,000 | 195 | 187 | 76 | 126 | 102 | 28 | 6 | 20 | 18 |
| 60,000 | 206 | 197 | 80 | 134 | 108 | 30 | 6 | 22 | 19 |
| 70,000 | 218 | 208 | 85 | 140 | 113 | 32 | 6-1/2 | 23 | 20 |
| 80,000 | 227 | 218 | 89 | 146 | 120 | 33 | 6-1/2 | 24 | 21 |
| 90,000 | 236 | 226 | 92 | 153 | 126 | 35 | 7 | 26 | 22 |
| 100,000 | 244 | 234 | 95 | 158 | 130 | 36 | 7 | 27 | 23 |
