Description

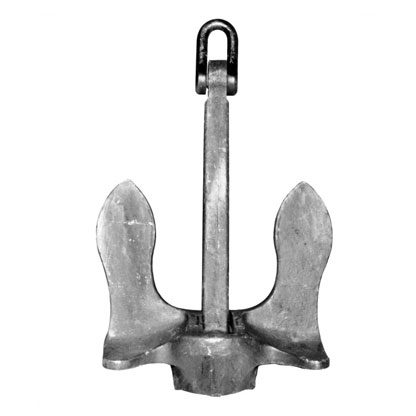

This is the standard anchor for ships that are likely to encounter all types of sea bottoms. It combines the advantages of dead weight for holding in very hard bottoms with the ability to bite and hold in mud and sand. Its features include rugged construction, simple design, with easy handling and stowing.
| Anchor Weight (lb) | A | B | C | D | E | F | G | H | J |
|---|---|---|---|---|---|---|---|---|---|
| 100 | 29-1/2 | 13-3/4 | 7-3/8 | 12-3/4 | 8 | 4 | 3/4 | 1-1/2 | 2-1/2 |
| 150 | 29-1/2 | 16 | 8-1/2 | 14-1/2 | 9 | 5 | 7/8 | 2-1/2 | 3 |
| 200 | 30 | 17-1/8 | 9-1/4 | 15-3/4 | 10-1/4 | 5 | 1 | 2-1/2 | 3-3/4 |
| 250 | 30-1/2 | 21 | 10-1/2 | 17 | 12 | 5 | 1 | 3-7/8 | 4 |
| 300 | 31-1/2 | 23-1/4 | 11-3/8 | 18 | 13-1/4 | 5-1/4 | 1-1/16 | 3-7/8 | 4 |
| 350 | 32-1/2 | 24-3/4 | 12-1/2 | 18-3/4 | 13-5/8 | 6 | 1-1/8 | 4-1/4 | 4-1/4 |
| 400 | 33-1/2 | 24-3/4 | 12-3/4 | 20-1/2 | 14 | 6 | 1-1/8 | 4-1/4 | 4-1/2 |
| 500 | 35 | 26-1/2 | 13-1/4 | 20-1/2 | 14 | 7 | 1-1/2 | 5-3/4 | 5 |
| 750 | 38 | 32 | 16 | 24 | 17 | 7 | 1-1/2 | 5-3/4 | 5 |
| 1,000 | 44 | 34-1/4 | 18 | 25-1/4 | 19-1/4 | 7-1/2 | 1-7/8 | 6-1/8 | 5-1/2 |
| 1,200 | 47 | 36 | 18 | 28 | 19-1/4 | 9-1/2 | 1-7/8 | 6-1/2 | 6 |
| 1,500 | 54 | 43 | 20 | 32 | 21-1/2 | 9-1/2 | 2 | 7 | 7 |
| 2,000 | 57 | 43 | 21-1/4 | 33-1/2 | 23-3/4 | 9-1/2 | 2 | 7 | 7 |
| 2,250 | 61 | 43 | 25-1/4 | 39-3/4 | 24-1/4 | 9-3/4 | 2-1/8 | 7 | 7 |
| 2,500 | 58 | 44-3/4 | 23-1/4 | 35-3/8 | 24-1/4 | 9-3/4 | 2-1/8 | 8-1/2 | 7-1/2 |
| 2,800 | 58 | 48 | 25 | 35-7/8 | 25-1/2 | 9-3/4 | 2-1/8 | 8-1/2 | 7-1/2 |
| 3,000 | 64 | 47 | 25-1/2 | 36 | 26 | 12 | 2-1/2 | 10 | 8-3/4 |
| 3,500 | 64 | 52-3/4 | 27-1/2 | 39-1/2 | 28-1/2 | 12 | 2-1/2 | 10 | 8-3/4 |
| 4,000 | 70-5/8 | 53-1/4 | 27-1/2 | 39-1/4 | 29 | 12 | 2-1/2 | 10 | 9-1/2 |
| 4,500 | 70-5/8 | 56-3/4 | 29 | 42 | 30 | 12 | 2-1/2 | 10 | 9-1/2 |
| 5,000 | 76 | 57-1/2 | 30 | 42 | 31-1/4 | 15 | 3 | 12 | 10-1/4 |
| 6,000 | 76 | 63-1/2 | 33-1/4 | 47 | 34-1/2 | 15 | 3 | 12 | 10-1/4 |
| 6,300 | 76 | 63-1/2 | 33-1/4 | 47 | 34-1/2 | 15 | 3 | 12 | 10-1/4 |
| 6,500 | 82 | 63-1/2 | 33 | 47-5/8 | 17-1/4 | 15 | 3 | 12 | 10-3/4 |
| 6,750 | 82 | 65 | 33-3/4 | 48-3/4 | 17-5/8 | 15 | 3 | 12 | 10-3/4 |
| 7,000 | 82 | 66-5/8 | 34-3/4 | 49-3/4 | 18 | 15 | 3 | 12 | 10-3/4 |
| 7,600 | 82 | 67-1/2 | 34-3/4 | 49-3/4 | 18-3/8 | 15 | 3 | 12 | 10-3/4 |
| 8,100 | 93-1/2 | 68-1/4 | 34-1/4 | 48-7/8 | 18-1/4 | 17 | 3-1/2 | 13-1/4 | 11-1/2 |
| 8,600 | 93-1/2 | 68-1/2 | 35-3/4 | 50-1/2 | 18-1/2 | 17 | 3-1/2 | 13-1/4 | 11-1/2 |
| 9,000 | 96 | 70-1/4 | 36-3/8 | 51-3/4 | 19-1/8 | 17 | 3-1/2 | 13-1/4 | 11-1/2 |
| 10,000 | 96 | 75-1/2 | 39 | 58 | 21 | 19 | 4 | 14-3/4 | 12 |
| 11,000 | 96 | 75-1/2 | 39 | 58 | 21 | 19 | 4 | 14-3/4 | 12 |
| 12,000 | 96 | 76-3/4 | 40 | 58 | 21-3/4 | 19 | 4 | 14-3/4 | 12 |
| 13,000 | 98 | 76-3/4 | 40 | 58 | 21-3/4 | 19 | 4 | 14-3/4 | 12 |
| 14,000 | 103 | 80-1/2 | 44 | 60 | 22-1/4 | 19 | 4 | 14-3/4 | 13 |
| 15,000 | 103 | 86 | 46 | 65 | 24 | 19 | 4 | 14-3/4 | 13 |
| 16,000 | 108 | 86 | 46 | 65 | 24 | 19 | 4 | 14-3/4 | 13 |
| 18,000 | 112 | 88-1/4 | 48-1/4 | 65-5/8 | 24-3/4 | 22 | 4-1/2 | 16-3/4 | 13 |
| 18,900 | 112 | 88-1/4 | 48-1/4 | 65-5/8 | 24-3/4 | 22 | 4-1/2 | 16-3/4 | 13 |
| 20,000 | 112 | 96 | 50 | 72 | 26 | 22 | 4-1/2 | 16-3/4 | 14 |
| 25,000 | 120 | 103 | 53-3/4 | 77-1/2 | 28 | 22 | 4-1/2 | 16-3/4 | 15 |
| 30,000 | 128 | 110 | 57-1/4 | 82-1/2 | 29-7/8 | 24 | 5 | 18-3/4 | 16 |
| 35,000 | 135 | 116 | 60 | 87 | 31-1/2 | 25 | 5 | 19 | 17 |
| 40,000 | 140 | 121 | 63 | 91 | 32 | 26 | 5-1/2 | 20 | 17-1/2 |
| 45,000 | 147 | 126 | 65 | 94 | 34 | 27 | 5-1/2 | 21 | 18 |
| 50,000 | 152 | 131 | 68 | 99 | 35 | 28 | 6 | 21-1/2 | 19 |
