Pool Anchor

High-holding power anchor for sand or mud bottoms. Certified drawings available on request.

Category: Tags: , , , , ,
Contact us to learn more or start a quote.
(206) 623-8500
Contact Us

Description

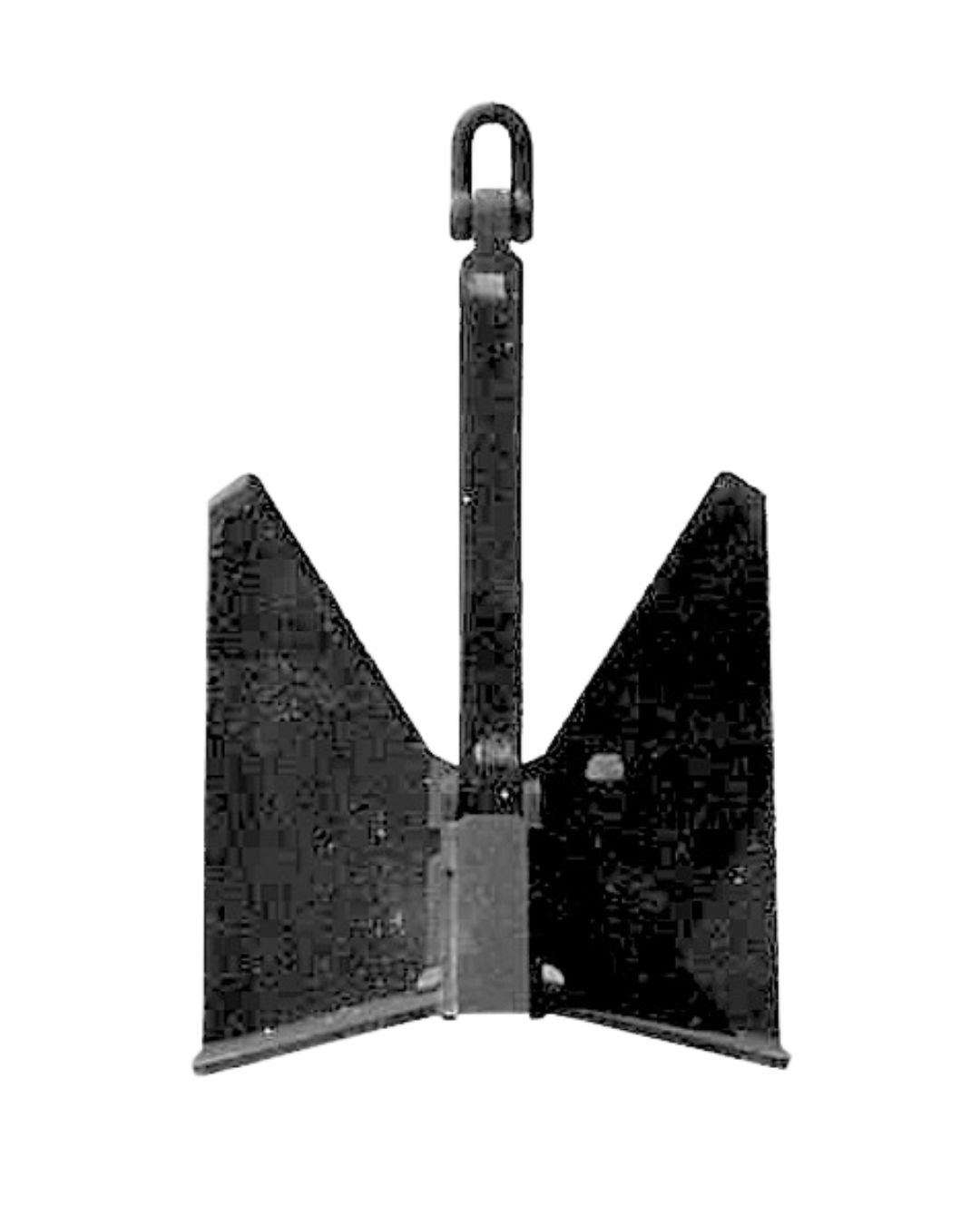

The Pool anchor is a high-holding power type anchor for sand or mud bottoms. Certified drawings of anchors listed above, and intermediate and larger sizes, may be furnished on request.

Anchor Weight (kg) A (MM) B (MM) C (MM) D (MM) E (MM) F (MM) G (MM) H (MM)
90 747 537 299 491 632 120 22 90
105 788 565 315 516 665 142 28 105
125 833 597 333 546 703 142 28 105
135 857 615 343 562 723 142 28 105
180 942 676 377 618 796 157 32 116
225 1016 728 406 666 858 174 36 125
270 1079 774 432 708 911 174 36 125
315 1136 815 455 745 960 201 40 140
360 1188 852 475 780 1002 201 40 140
430 1258 902 503 825 1062 201 40 140
495 1320 948 528 866 1115 201 40 140
585 1396 1002 558 916 1180 236 50 175
675 1465 1050 586 960 1236 236 50 175
765 1528 1096 610 1002 1290 236 50 175
855 1585 1138 634 1040 1338 306 60 225
970 1652 1185 660 1083 1395 306 60 225
1,080 1714 1230 685 1124 1446 306 60 225
1,195 1771 1270 708 1161 1495 306 60 225
1,305 1825 1309 730 1180 1541 306 60 225
1,440 1886 1352 764 1236 1592 306 60 225
1,565 1942 1386 777 1274 1640 361 75 255
1,710 1997 1433 799 1309 1685 361 75 255
1,845 2048 1469 819 1342 1729 261 75 255
1,980 2098 1504 838 1375 1770 361 75 255
2,140 2151 1543 860 1411 1816 361 75 255
2,295 2202 1580 880 1444 1860 361 75 255
2,475 2260 1620 904 1480 1910 400 80 290
2,655 2312 1664 925 1513 1954 400 80 290
2,835 2364 1700 945 1550 1996 400 80 290
3,040 2418 1735 968 1585 2042 400 80 290
3,240 2471 1773 988 1620 2086 400 80 290
3,445 2522 1809 1009 1653 2129 400 80 290
3,670 2575 1847 1030 1690 2174 500 90 360
3,940 2637 1892 1055 1730 2226 500 90 360
4,210 2696 1934 1078 1763 2276 500 90 360
4,500 2757 1978 1103 1803 2328 500 90 360
4,840 2824 2026 1130 1852 2385 500 90 360
5,175 2889 2072 1155 1894 2439 550 100 400
5,515 2950 2116 1180 1934 2491 550 100 400
5,850 3009 2159 1204 1973 2541 550 100 400
6,225 3072 2204 1229 2014 2594 550 100 400
6,525 3121 2239 1248 2043 2635 550 100 400
6,975 3190 2290 1276 2092 2695 550 100 400
7,425 3258 2337 1303 2133 2751 660 130 470
7,875 3323 2384 1329 2173 2805 660 130 470
8,325 3385 2428 1354 2219 2858 660 130 470
8,775 3445 2471 1378 2253 2908 660 130 470
9,225 3502 2512 1401 2293 2958 660 130 470
9,675 3558 2553 1423 2333 3004 700 140 500
10,125 3613 2592 1445 2369 3050 700 140 500
10,573 3666 2630 1466 2404 3095 700 140 500
12,075 3881 2748 1488 2513 3235 750 150 540
13,350 3962 2842 1585 2593 3345 800 160 570
16,490 4251 3049 1700 2787 3589 870 175 625
