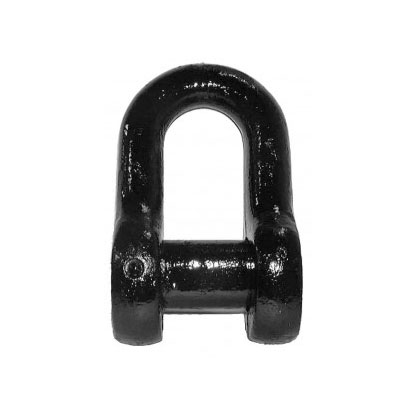

End/Bending Shackle

End shackles and bending shackles for anchor chain. Available for chain sizes 1/2″ to 3-3/4″. Dimensions in inches, weights in pounds.

Description

Chain Size Inches / mm	A	B	C	D	E	F	G	H	Wt. Lbs.
1/2–5/8 / 13–16	5-3/16	3-1/4	2	11/16	2-1/4	1-5/8	1-1/8	1	3
11/16–3/4 / 17–19	6-1/4	4	2-3/8	1	3-1/8	2	1-3/8	1-1/8	5
13/16–7/8 / 21–22	7-1/4	4-1/2	2-5/8	1-1/8	3-5/8	2-1/4	1-9/16	1-1/4	7.5
15/16–1 / 24–25	7-7/8	4-7/8	3	1-1/4	3-7/8	2-3/8	1-3/4	1-3/8	10
1-1/16–1-1/8 / 27–29	8-5/8	5-3/8	3-3/8	1-3/8	4-1/4	2-5/8	1-15/16	1-1/2	14
1-3/16–1-1/4 / 30–32	9-3/8	5-7/8	3-5/8	1-1/2	4-5/8	2-7/8	2-1/8	1-3/4	19
1-5/16–1-3/8 / 33–34	10-3/4	6-1/2	4-1/4	1-3/4	5-1/8	3	2-1/2	2	27
1-7/16–1-1/2 / 37–38	11-1/2	6-7/8	4-5/8	1-7/8	5-3/8	3-1/8	2-3/4	2-1/4	34
1-9/16–1-5/8 / 40–41	12-1/4	7-3/8	5	2	5-3/4	3-3/8	2-15/16	2-3/8	40
1-11/16–1-3/4 / 43–44	13-1/8	8-1/8	5-1/4	2-1/4	6-1/8	3-5/8	3-1/8	2-1/2	52
1-13/16–1-7/8 / 46–48	14-5/8	8-3/4	6	2-1/2	6-3/4	3-3/4	3-1/2	2-7/8	76
1-15/16–2-1/8 / 49–54	15-7/8	9-1/2	6-5/8	2-3/4	7-1/8	4	3-7/8	3-1/8	100
2-1/16–2-3/8 / 56–60	17-3/8	10-3/8	7-1/4	3	7-3/4	4-3/8	4-1/4	3-3/8	131
2-7/16–2-5/8 / 62–67	19-1/8	11-1/8	8	3-1/4	8-3/4	4-5/8	4-5/8	3-3/4	170
2-11/16–2-7/8 / 68–73	20-1/2	12-3/8	8-5/8	3-5/8	9-1/8	5-1/8	5	4	212
3–3-1/8 / 76–79	22-5/8	13-1/4	9-5/8	4	9-7/8	5-1/4	5-5/8	4-1/2	293
3-1/4–3-3/8 / 83–86	24	13-7/8	10-1/4	4-1/4	10-1/2	5-3/8	6	4-7/8	358
3-1/2 / 89	25-1/2	14-3/4	10-7/8	4-1/2	11-1/8	5-3/4	6-1/8	5-7/16	427
3-3/4 / 95	27-5/8	16	11-3/4	4-7/8	12	6-1/4	6-15/16	5-3/4	552
