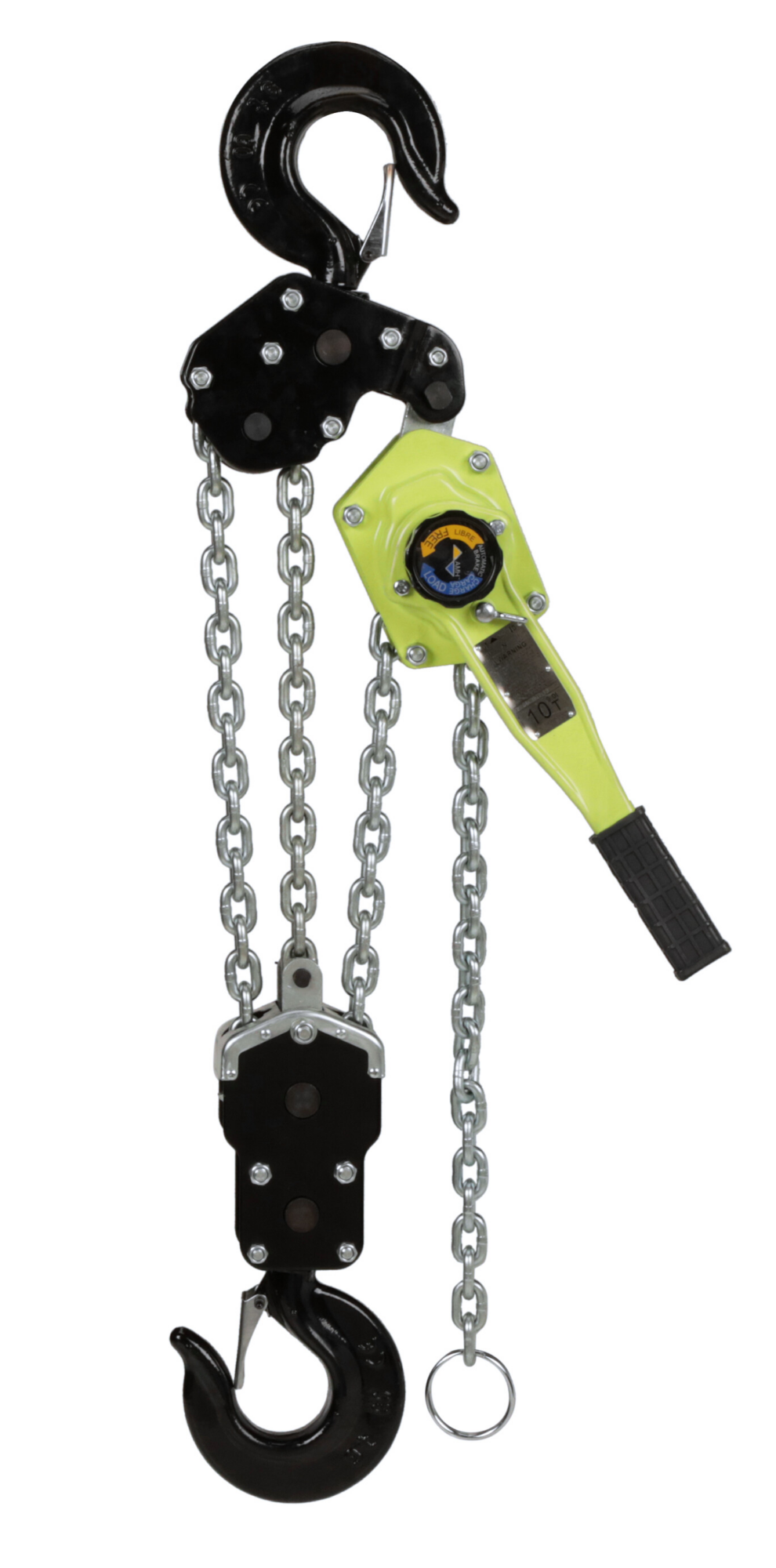

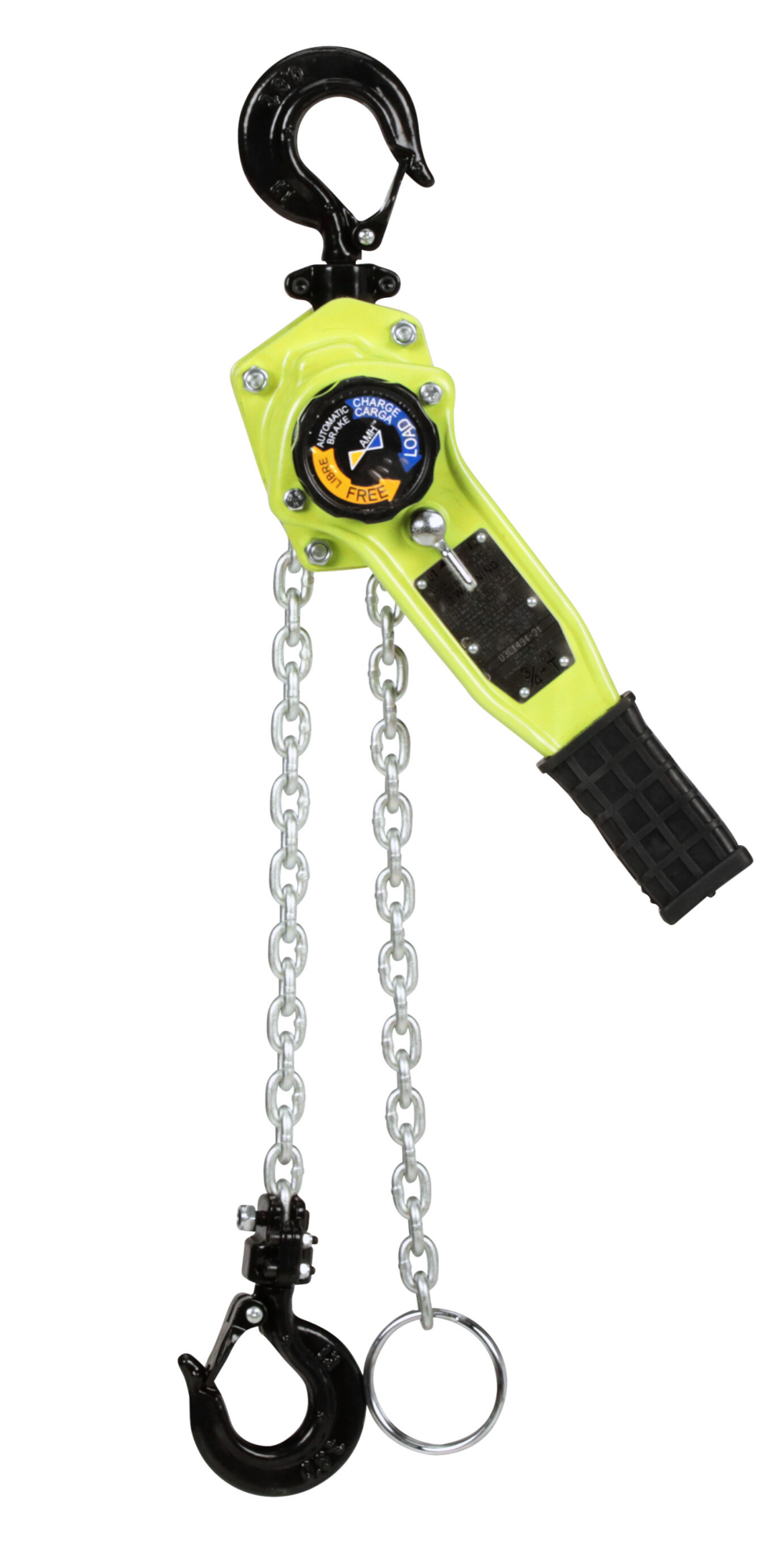

Description
Features
- 3/4 to 10 US Ton Capacity (3/4 to 9 Metric Ton Capacity)
- Dual rated with more choices of capacity
- Hook blocks are bolted, allowing easy disassembly for complete hook inspection
- Lightweight and durable all steel construction with powder coated finish and plated external components to resist corrosion
- Premium US Made Precision hoist load chain with strength of G80 chain
- Weston style mechanical load brake is self-adjusting with double pawls, asbestos-free brake discs and is surrounded by an enclosure to limit contamination.
- Self-adjusting double pawl disk type mechanical load brake ensures positive load control
- Horseshoe chain guard allows operation in any orientation
- Optional Overload Protection is a one directional clutch that will only slip in the lift direction
- Meets: ASME/ANSI B30.21, OSHA, NASA-STD-8719.9
- ATEX rated certified II 3 GD c IIB 54º C X for limited use in Hazardous Environments
- Long-life fused brake friction disk will not crack, shatter, or absorb moisture
Ordering
- Order by descriptive model number, example: Model LA032-20UV
- S = Shipyard hooks. Available for 1.6 & 3.2t only
- V = Overload protection, one-way operation that will lower any load only
- L = Self Locking Hook includes Top & Bottom (available for 1 1/8, 1 3/4 & 3 1/2T)
Specifications

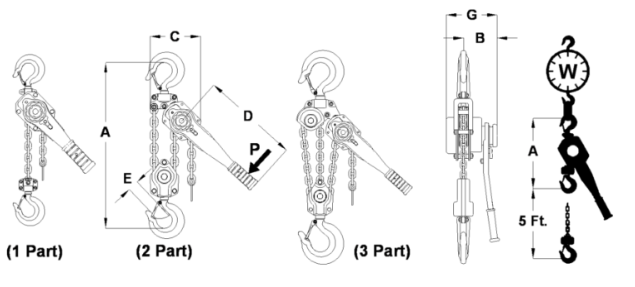

| Model | US Ton | Metric Ton | *Min. Load lbs | *Min. Load kg | Chain | Parts | A” | B” | C” | D” | E” | F” | G” | P (lbs) @ WLL | W lbs/ft. lift | W (lbs) 5ft. lift |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LA008 | 3/4+ | 0.8 | 44 | 20 | C6X18Z | 1 | 13.4 | 3.9 | 5.2 | 10.5 | 1.02 | 0.98 | 6.2 | 47 | 0.54 | 14.9 |
| LA010 | 1+ | 1 | 44 | 20 | C6X18Z | 1 | 13.4 | 3.9 | 5.2 | 12.1 | 1.02 | 0.98 | 6.2 | 51 | 0.54 | 15.3 |
| LA016 | 1 3/4 | 1.6 | 70 | 32 | C7X21Z | 1 | 15.7 | 4.4 | 5.7 | 14 | 1.14 | 1.18 | 7.2 | 66 | 0.74 | 24.1 |
| LA020 | 2 1/4 | 2 | 88 | 40 | C8X24Z | 1 | 18.1 | 4.6 | 7.6 | 14 | 1.38 | 1.3 | 8.1 | 66 | 0.92 | 36.2 |
| LA025 | 2 3/4 | 2.5 | 110 | 50 | C9X27Z | 1 | 19.1 | 4.6 | 7.6 | 14 | 1.38 | 1.3 | 8.1 | 74 | 1.25 | 37.9 |
| LA032 | 3 1/2 | 3.2 | 141 | 64 | C10X28Z | 1 | 20.5 | 4.8 | 7.8 | 16.5 | 1.46 | 1.42 | 8.3 | 72 | 1.5 | 44.8 |
| LA063 | 7 | 6.3 | 278 | 126 | C10X28Z | 2 | 25.2 | 4.8 | 9.1 | 16.5 | 1.69 | 1.69 | 8.3 | 74 | 3 | 66.3 |
| LA090 | 10 | 9 | 396 | 180 | C10X28Z | 3 | 28.7 | 4.8 | 13.3 | 16.5 | 1.85 | 1.73 | 8.3 | 76 | 4.5 | 110.6 |
Minimum Load is the load required to activate the automatic load brake. The brake will stop a load even if the operator leaves the unit in free chain mode or in neutral. This is a similar reaction to a seatbelt.
(1) Shipping weight can be estimated by adding approx. 15% to “W” hanging weight
Standard lift = 5, 10, 15 and 20 ft. Custom lifts are available.
