FASTER
Terminate a synthetic rope in the field in minutes
STRONGER
The Mammoth SRS is 100% efficient and stronger than the HMPE rope’s breaking strength
ECONOMICAL
The SRS Mammoth is far more affordable than other complicated solutions.
The installation process allows the Mammoth SRS to be used at a moment’s notice (much faster than a resin solution) The SRS protects the rope from fraying or damage which allows them to be used in a limitless variety of applications Check out our video below on how simple the application process is!
SRS (Synthetic Rope Socket) Mammoth
Mammoth Synthetic Rope Sockets are color-coded by rope diameter.
Custom sizes are available upon request.
Sockets are provided with a powder coat finish.

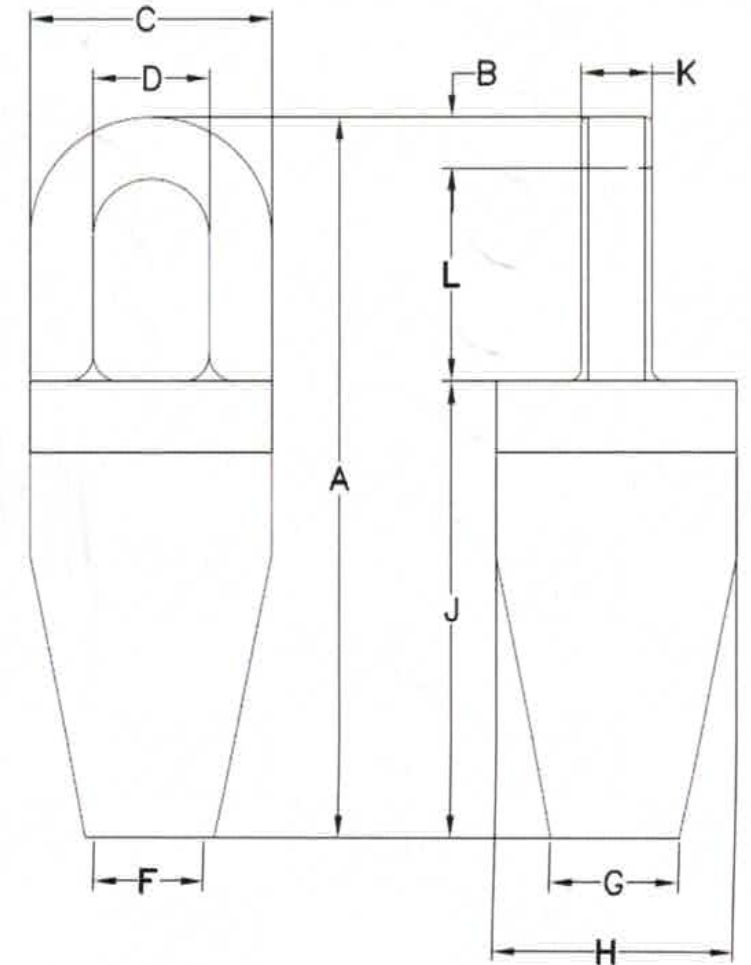

| Max Rope Diameter (MM) | Min Tensile Strength (Kg) | Weight (Kg) & Material (Custom Materials Available) | A (mm) | C/H (mm) | D (mm) | F (mm) | G (mm) | L (mm) |
|---|---|---|---|---|---|---|---|---|
| 16-19 | 31,071 | 2.4 (Steel Alloy) | 183 | 69 | 38 | 25 | 37 | 46 |
| 22-25 | 49,895 | 5.4 (Steel Alloy) | 249 | 94 | 52 | 35 | 51 | 63 |
| 28-32 | 74,800 | 12.4 (Steel Alloy) | 314 | 119 | 65 | 44 | 64 | 79 |
| 38-50 | 161,000 | 42 (Steel Alloy) | 492 | 184 | 102 | 68 | 99 | 124 |
| 57-64 | 240,000 | 76 (Steel Alloy) | 610 | 229 | 125 | 86 | 122 | 151 |
| 70-76 | 354,000 | 126 (Steel Alloy) | 726 | 273 | 150 | 102 | 146 | 183 |
