Description

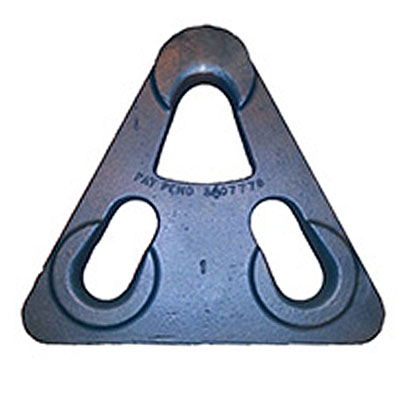

Simpler, stronger, and safer — that’s the MARQUIP tow plate. Its patented design lets you rig the bridle with only three shackles, eliminating the bunched-together cluster of gear needed with conventional flounder plates. The shackle arrangement also eliminates the multiple bends in tow wire or pennant that cause wear and weakness. Cast nickel-chrome steel assures resistance to corrosion.

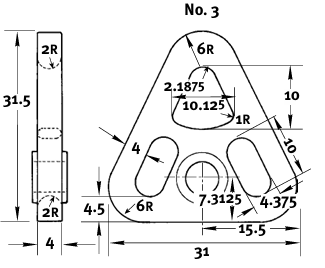

| No. 1 | No. 2 | No. 3 | |
|---|---|---|---|
| Shackle Sizes* | 1-1/2, 1-3/4, 2 | 2-1/4, 2-1/2, 2-3/4–3 | 3, 4 |
| Dimensions | 17-1/2 x 16 | 22-1/2 x 23-1/2 | 31 x 31-1/2 |
| Weight (lbs.) | 70 | 170 | 548 |
| Proof Test (lbs.) | 300,000 | 485,000 | 624,000 |
