Description
Galvanized steel mooring link of compact design typically utilized as connection between wire rope and fiber forerunner.
Sizes: 90, 120 and 180 Metric Tons.

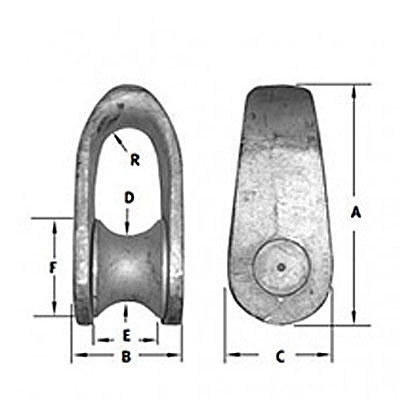

| Model | 90T | 120T | 180T |
|---|---|---|---|
| Forerunner Circ. (inches) | 7–9 | 9–11 | 11–15 |
| A (mm) | 285 | 324 | 350 |
| B (mm) | 115 | 142 | 184 |
| C (mm) | 136 | 150 | 160 |
| D (mm) | 65 | 75 | 85 |
| E (mm) | 75 | 90 | 120 |
| R (mm) | 22 | 28 | 30 |
| Breaking Load M/Tons | 90 | 120 | 180 |
| Proof Load M/Tons | 55 | 70 | 95 |
| Safe Working Load M/Tons | 30 | 40 | 60 |
| Weight | 11.2 kg (25 lbs.) | 16.9 kg (37 lbs.) | 25 kg (55 lbs.) |
