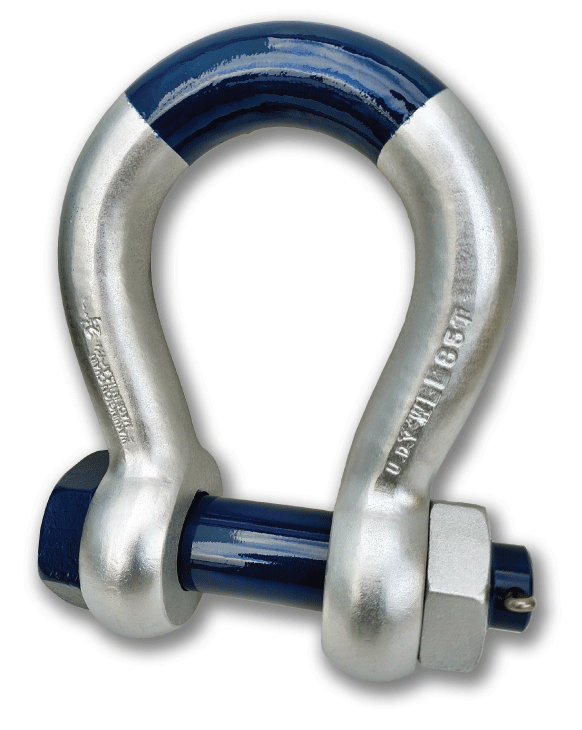

SUPERIOR STRENGTH AND QUALITY FOR YOUR TOUGHEST LIFTS
- Quenched and Tempered Alloy
- Bows and Pins are Forged Alloy Steel
- Each Shackle is stamped with
Safe Working Load Limit - Custom sizes available by special order
- All sizes have been proof tested to
twice the Working Load Limit - Pins are painted blue,
over galvanization coat - All sizes are InfoChip® RFID-equipped
- ASME B30.6 standard met or
exceeded in identification, ductility,
design factor, proof load and
temperature requirements - MarQuip products meet or exceed
many other critical requirements,
including RR-C-271F Type IVA Grade A
Class 3 except for those provisions
required of the contractor - Optional Certification by ABS available
for use on Steel Vessels and Cranes - By special arrangement, Shackles will
meet DNV impact requirements of 42
joules at -20°C
| Part Number | Trade Size (nom) | D Dimension (min) | P Dimension pin (min) | E Diameter Inside Eye | W Width Between Eyes | B Bow (min) | L Length Inside | R Diameter Outside eye (max) | Working Load Limit (WLL) Tons |
|---|---|---|---|---|---|---|---|---|---|
| 8472120003 | 2 | 1.9 | 2.19 | 2.38+0.020/-0.015 | 3.250±0.188 | 5.25 | 7.75±0.50 | 5.25 | 55T |
| 8472125003 |
2.5
|
2.38
|
2.68
|
2.88+0.020/-0.015 | 4.125±-0.250 | 6.75 | 10.50-±-0.50 | 6.25 | 85T |
| 8472130003 | 3 | 3.12 |
3.25
|
3.38+0.020/-0.015 | 5.000±0.250 | 7.375 | 13.00±0.75 | 6.75 | 120T |
| 8472135003 | 3.5 | 3.62 | 3.75 | 3.88+0.030/-0.025 | 5.500±0.250 | 9 | 15.00±0.75 | 8.5 | 150T |
| 8472140003 | 4 | 4.0 | 4.25 | 4.38+0.030/-0.025 | 6.500±0.250 | 10.5 | 17.00±0.75 | 9.5 | 175T |
