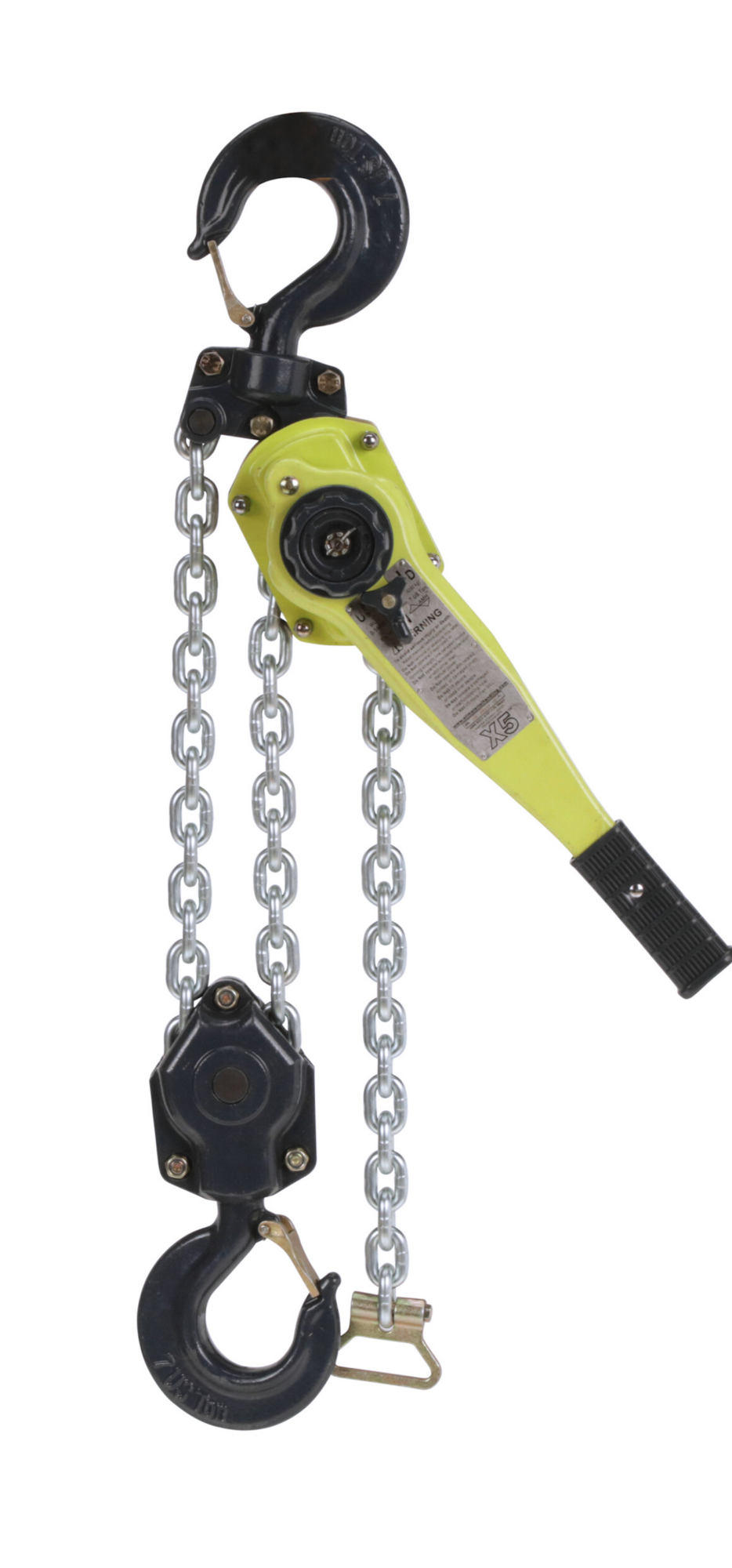

Description
Features
- 3/4 to 10 US Ton Capacity (3/4 to 9 Metric Ton Capacity)
- Final assembly and load test in the USA
- Brake sets and operates without minimum preload
- Ultimate strength is 5 X Working Load Limit, meeting ASME HST-3 Appendix A, for marine and other US Department of Defense (DOD) applications
- 100% inspection and hook replacement are permitted by bolted hook blocks
- Weston style mechanical load brake is self-adjusting with double pawls, asbestos-free brake discs and is surrounded by an enclosure to limit contamination.
- Fused brake disc cannot crack, shatter, or absorb moisture
- Precision hoist load chain with strength of G100 chain made in Japan or EU
- Ambient Temperature range -40° F to +140° F (-40° C to +60° C)
Options
- Overload protection – one way directional slip clutch to ensure any load can be lowered
- Any Chain Length
- Shipyard Hook (Available for 1-3/4 & 3-1/2T)
- Self-locking hooks (Available for 1-1/8, 1-3/4 & 3-1/2T)
- Top Hook Extender Kit
Ordering
- Order by descriptive model number, example: Model X5L07056-05VS
- S = With Shipyard hooks includes top and bottom (available for 1 3/4 & 3 1/2T)
- V = With Overload protection
- L = Self Locking Hook includes Top & Bottom (available for 1 1/8, 1 3/4 & 3 1/2T)
Specifications
| Base Model | US Ton | kg | Chain Grade 100 | Parts | A” Min. | B” | C” | D” | E” w/ Latch | G” | P (lbs) | W/Ft Lift (lbs) | W(1) 5′ Lift (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| X5L02250 | 3/4 to 1 1/8 | 1020 | C5.6H17Z | 1 | 11.8 | 3.8 | 4.7 | 9.6 | 1.1 | 5.7 | 66 | 0.5 | 13.5 |
| X5L03528 | 1 1/2 to 1 3/4 | 1600 | C7.1H20Z | 1 | 13.2 | 3.9 | 5.0 | 10.4 | 1.2 | 6.5 | 68 | 0.7 | 18.0 |
| X5L07056 | 3 to 3 1/2 | 3200 | C10H28Z | 1 | 15.6 | 4.5 | 6.3 | 16.3 | 1.4 | 7.7 | 84 | 1.5 | 36.5 |

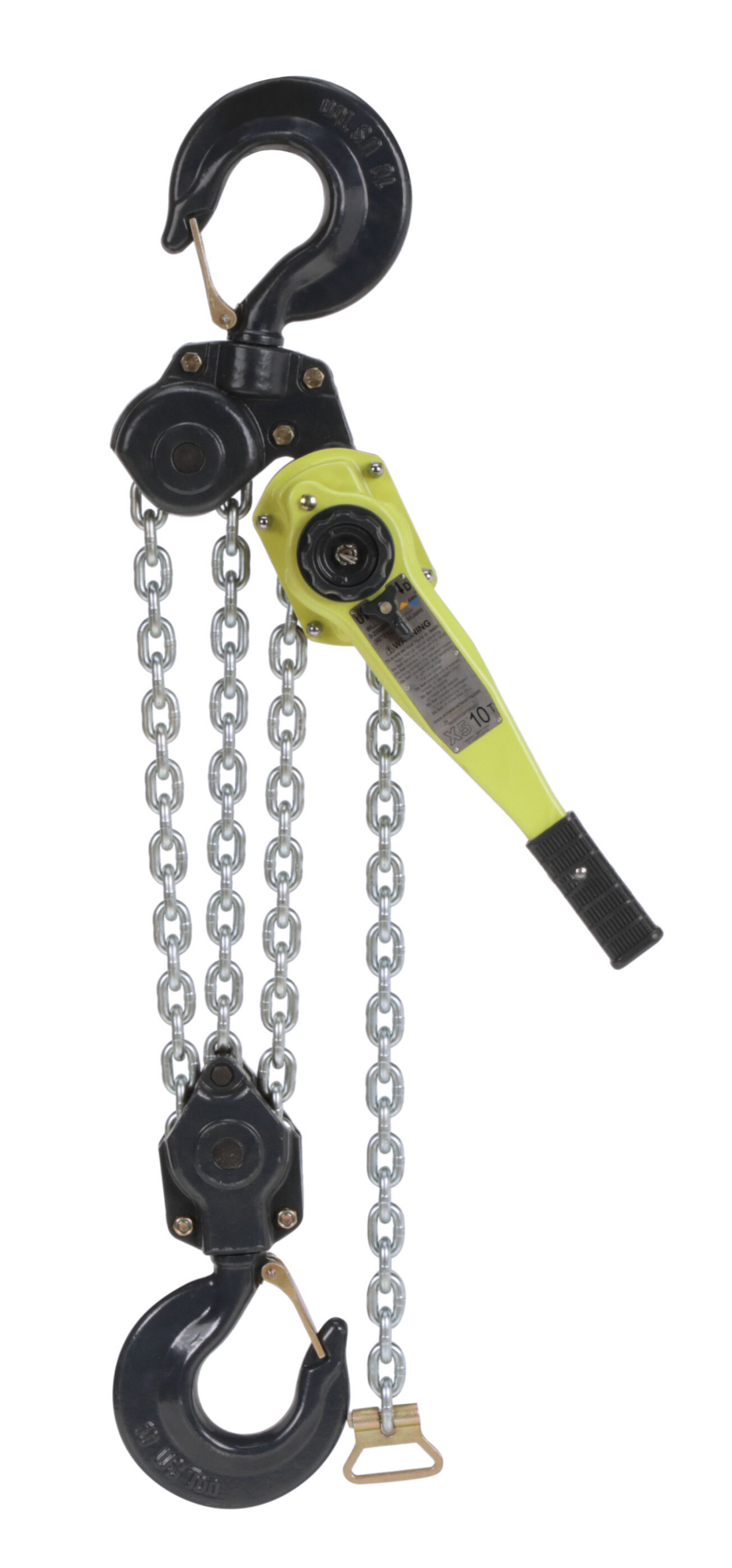

| X5L14000 | 6 to 7 | 6350 | C10H28Z | 2 | 21.3 | 4.5 | 8.6 | 16.3 | 1.8 | 7.7 | 86 | 3.0 | 55.0 |
| X5L20000 | 9 to 10 | 9070 | C10H28Z | 3 | 26.8 | 4.5 | 11.7 | 16.3 | 2.1 | 7.7 | 88 | 4.5 | 90.0 |
(1) Shipping weight can be estimated by adding approx. 15% to “W” hanging weight
Standard lift is 5, 10, 15 and 20 ft. Custom lifts are available.
