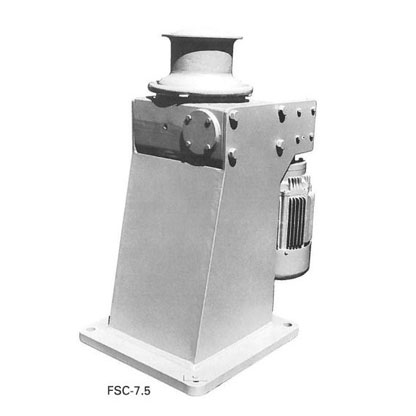

Standard and custom mooring capstans with one or two-way drive. FSC-5 through FSC-15. Line pull 1,700 to 5,000 lb.
| Model | HP | Line Speed (fpm) | Line Pull (lbs.) | Weight (approx.) | Height | Width | Depth |
|---|---|---|---|---|---|---|---|
| FSC-5 (LSC) | 5 | 75 | 1,700 | 900 | 44 | 22-1/2 | 30 |
| FSC-7.5 (LSC) | 7.5 | 75 | 2,600 | 950 | 44 | 22-1/2 | 32 |
| FSC-10 (LSC) | 10 | 75 | 3,000 | 1,050 | 44 | 22-1/2 | 32 |
| FSC-15 (LSC) | 15 | 75 | 5,000 | 2,300 | 44 | 28 | 38 |
