Description

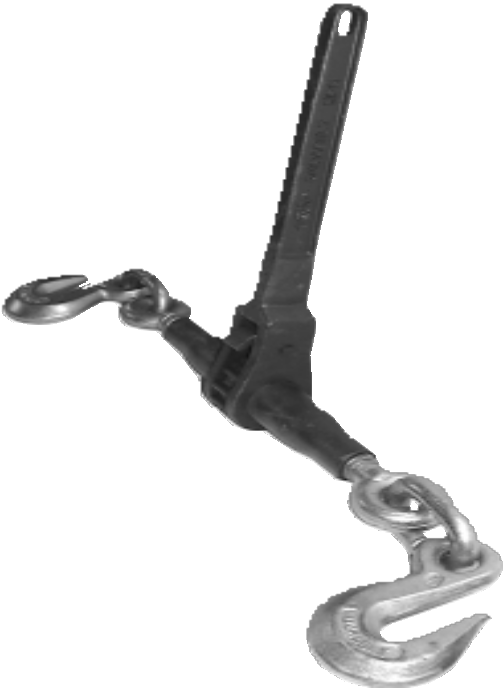

Standard Ratchet is designed for loose fit and easy operation requiring no lubricating fitting and has a minimum of moving parts.
Gravity Ratchet Dog No Spring Required. Solid Tubular Construction. 1-3/8” – 4 T.P.I. Acme Thread. 2-3/8” Dia. WLL 18,000 lbs.
Other sizes and configurations are available.
| Model | Min. Breaking Strength | Working Range | Notes |
|---|---|---|---|
| 1-3/8″ Forged Ratchet with Stub Ends | 90,000 lb. | 29″ to 46-1/2″ | |
| 1-3/8″ Forged Ratchet with Welded Staple Option | 90,000 lb. | ||
| 1-3/8″ Forged Eye/Eye Ratchet | 90,000 lb. | 39″ to 56-1/2″ | Forged Eye End |
| 1-3/4″ x 24″ Forged Stationary Ratchet | 126,000 lb. | 38-1/4″ to 58-1/4″ | With stops |
| 1-3/8″ x 24″ Forged Stationary Ratchet | 90,000 lb. | 37-3/4″ to 59-3/4″ | |
| 1-3/8″ x 24″ Forged River Ratchet | 90,000 lb. | 49″ to 70-1/2″ | Pelican hooks both ends |
